E27 Period Bronze Pewter Black Pendant Lampholder | Bayonet e27 Fitting With Cable Grip
Product Description

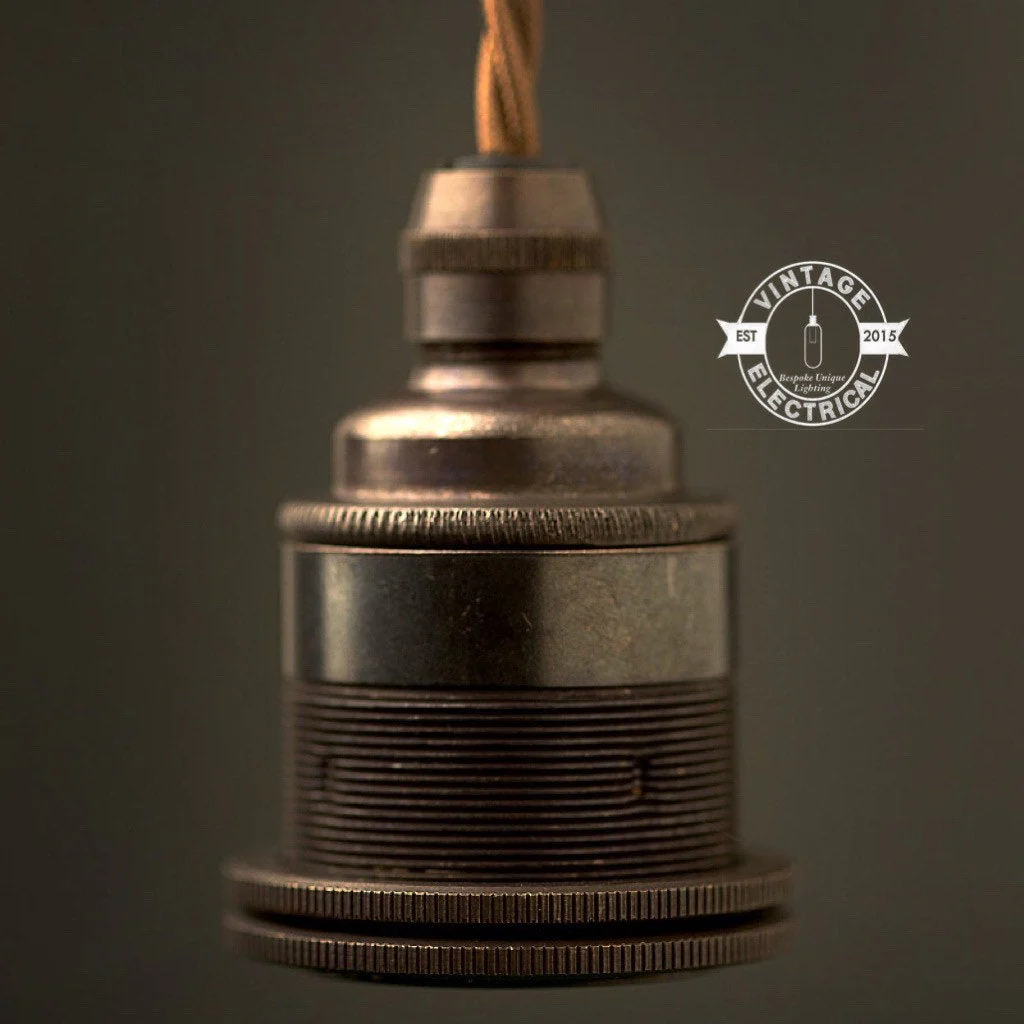

Antique Brass Pendant Lamp holder Edison E27 fitting with antique brass body. Internally this Brass Pendant Lamp holder Edison E27 fitting features a quality ceramic insert and brass screw terminals.
This precision made solid brass E27 lamp holder features a high quality ceramic insert with brass screw terminals. A compression style cord grip ensures that the cable can not be pulled from the fitting.
Shade rings are employed to hold a gallery or in some instances, a shade directly to the lamp holder. Where shade nuts are required to connect a galley or light shade, select two from the dropdown available. Our smooth variations of the brass E27 lamp holders do not have this feature.
This lamp holder must be earthed and uses an anti rotation mechanism to ensure that the body can not be open when changing the bulb. Before applying power. after wiring and reassembly, test the anti-rotation feature. If it fails to lock, remove the lamp holder body and bulb receptacle and gently open the anti-rotation mechanism over to a more aggressive position.
Our brass lamp holders are CE compliant for European markets.
These fittings require an earth connection & three core flex
Minimum diameter of fitting hole 39mm, max 46mm

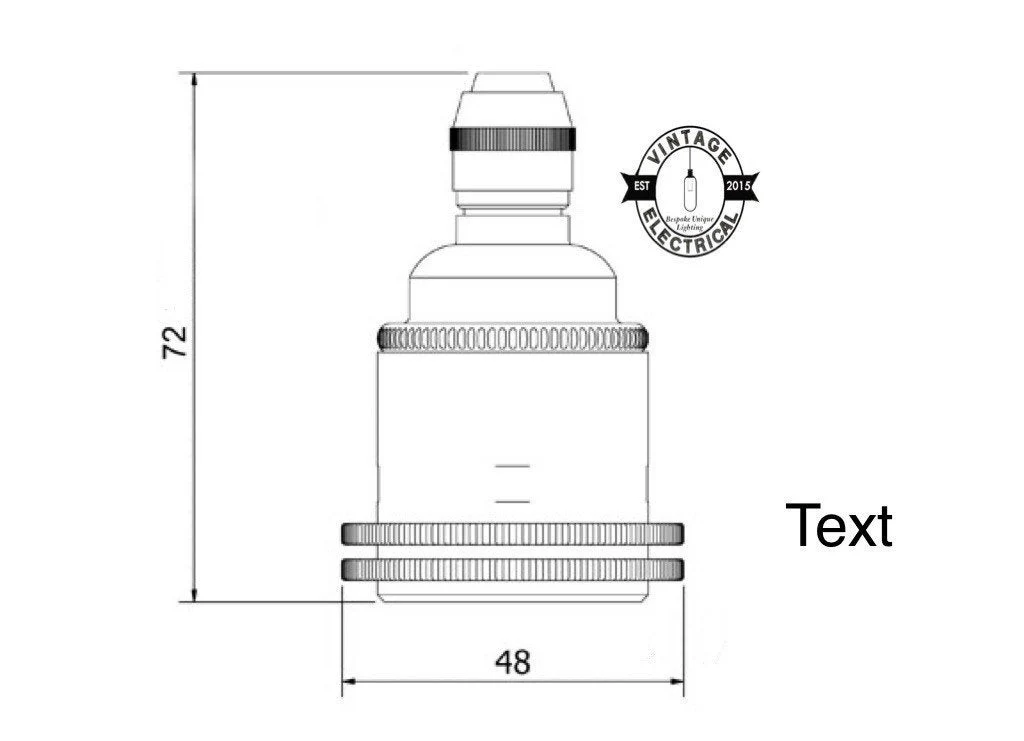

Height (bare) 58mm, (grip) 77mm, (hook) 93mm
BS EN 60238 RoHS & REACH Compliant
Max 100W bulb (without shade)
Disassembly instructions
Locate the active terminal and its anti-rotation mechanism. Using a suitable screwdriver, gently open the anti-rotation mechanism towards the centre of the lamp holder so as to clear it from the locking teeth on the bulb receptacle. This will now allow the lamp holder body to be unscrewed from the lamp holder top. Once disassembled, gently prise the anti-rotation tab back into position using a pair of small pliers so that it engages with the locking teeth on the bulb receptacle. We have also provided a downloadable visual guide to disassembly in the documents tab below.
